Vehicle introduction and performance characteristics:

Chassis configuration:Heavy Duty HOwo chassis, white flat floor cab with air conditioning, airbag seats electric doors and Windows, Weichai 220 HP engine, heavy duty 8-speed transmission with synchronizer, wheelbase 4700mm, heavy duty 10-ton rear axle, 1000 steel tires, original ABS, electric glass with air conditioning, direction assist, clutch booster, air brake brake.

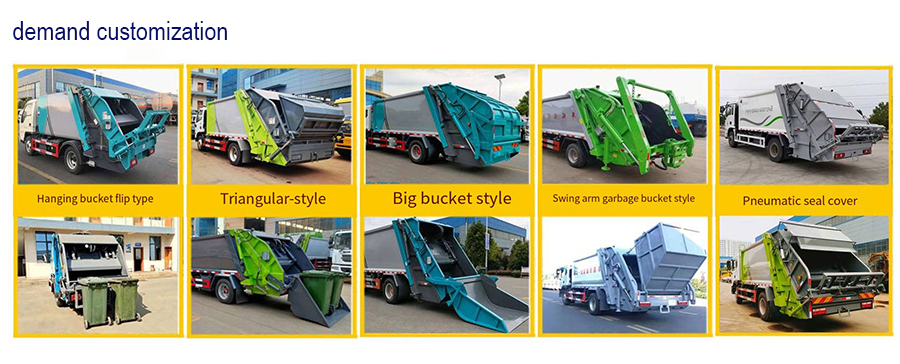

Function description:The box volume is 16m³, Overall dimensions: L9250mm,w2550mm,h3200mm，which is used for loading domestic garbage. It is composed of sealed garbage bin, filling device, pushing shovel, hydraulic transmission system and electrical control system. The whole vehicle is fully enclosed, using electrical and hydraulic integration technology, with the help of machine, electricity and hydraulic joint automatic control system, through the garbage bin, filler and push shovel and other special devices, to achieve garbage pouring, crushing or flattening, strong loading, the garbage into the car and compacting and passing. All the sewage in the compression process enters the sewage compartment, which solves the problem of secondary pollution in the garbage transportation process. Users can select different tipping mechanisms according to different garbage collection methods: Turn the standard garbage bucket ZBT59003-88 (300L), plastic trash can (240L), plastic trash can (660L), can also be optional triangulation, large floor bucket garbage bucket, swing arm garbage bucket and other flipping mechanisms. Optional pneumatic seal cover.
