Product description |
|
|
Place of Origin |
SUIZHOU, CHINA |
|
Brand Name |
CLW |
|
Certification |
CCC, SGS, BV, DOT, GCC |
|
Model Number |
CLW5120 |
|
Payment & Shipping Terms |
|
|
Minimum Order Quantity |
1 |
|
Unit Price |
Negotiable |
|
Packaging Details |
naked,waxed,bulk ship,ro-ro |
|
Delivery Time |
30-35 days |
|
Payment Terms |
L/C, D/A, D/P, T/T, Western Union, MoneyGram |
|
Supply Ability |
500 Unit/Month |
[Vehicle technical parameters] | |||

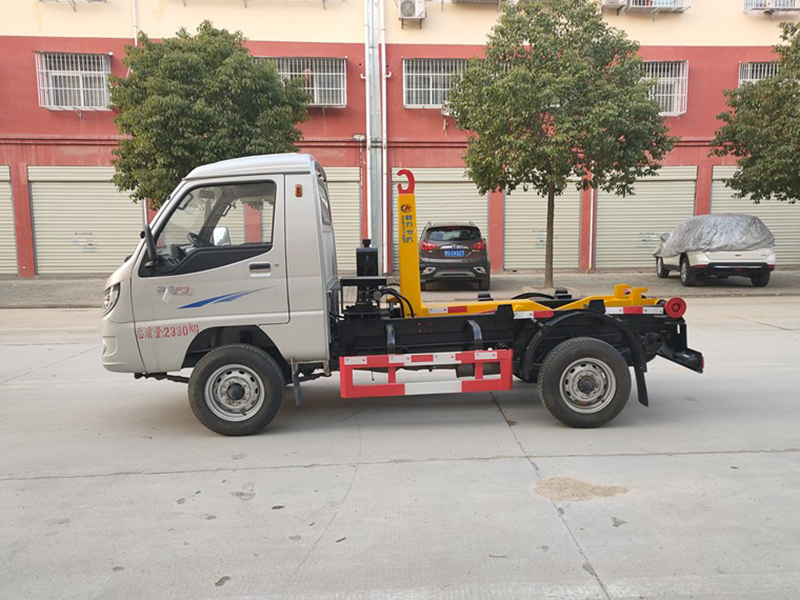

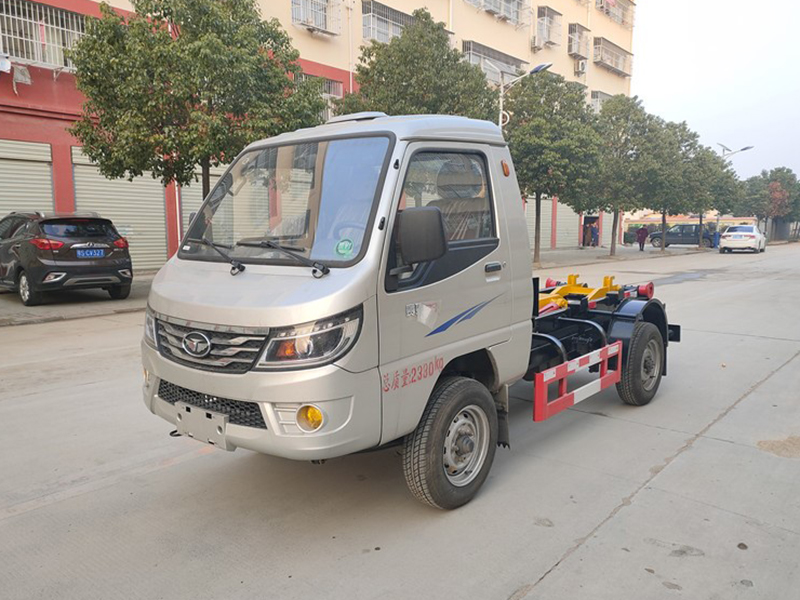

product name | Tang Jun single wheel 3 square hook arm garbage truck | ||
gross mass (kg) | 2330 | Tank volume (m3) | |
Rated mass (kg) | 800 | outline dimension (mm) | 4200， 4500X1550X1980 |
curb weight (kg) | 1400,1440 | Goods Chamber Size (mm) | XX |
Rated passenger capacity (person) | Total mass of quasi-trailer (kg) | ||
Number of passengers (person) | 2 | Saddle load mass (kg) | |
Approach angle / departure angle of (°) | 28/15 | Front suspension / rear suspension (mm) | 995/805 |
axle weight (kg) | 1010/1320 | speed of a motor vehicle (km/h) | 100 |
remarks: | Note: The vehicle is mainly used for garbage transfer, special device is hook arm; engine model and fuel consumption value (L / 100km): DK 12 C / 7.0; ABS system model / manufacturer: CM 4 YL / Guangzhou Rickomi Automotive Electronics Co., Ltd. Wheelbase and length correspondence: 2400 / 4200; 2700 / 4500. optional ETC. Select the cab along with the chassis. | ||
[Chassis technical parameters] | |||
Chassis model | ZB1020ADC3L | Chassis name | truck chassis |
name | Ou bell card | manufacturing enterprise | Shandong Tangjun Ouling Automobile Manufacturing Co., Ltd |
number of axles | 2 | Number of tires | 4 |
wheel base (mm) | 2400,2700 | ||
tyre size | 175R14LT 6PR,175R14LT 8PR | ||
Number of steel plate spring sheets | 3/5 | front gauge (mm) | 1294 |
Fuel types | gasoline | rear track (mm) | 1340 |
Emission basis standard | GB18352.6-2016 Country | ||
engine type | Engine production enterprise | engine displacement | engine power |
DK12C | Chongqing Xiaokang Power Co., LTD | 1240 | 67 |
◇ Chassis configuration: chassis configuration: 1550 single row cab, Chongqing Xiaokang 90 horsepower, 3 tons rear axle, Xiaokang five gear, 175R14 vacuum tire (rear single tire), bearing frame, directional power, ABS, (optional multimedia central control screen, reversing image)
◇ Upper configuration: strength alloy steel integrated main hook arm, reinforced auxiliary beam, cast steel tail support wheel, electronic control indoor and outdoor hydraulic control device (optional hand integrated), upper lifting capacity of 1500 KG, hydraulic completion on the box + lower box + locking + unloading and other operations, to realize the circulation transfer of one car with multiple boxes.
