Product description |
|
|
Place of Origin |
SUIZHOU, CHINA |
|
Brand Name |
CLW |
|
Certification |
CCC, SGS, BV, DOT, GCC |
|
Model Number |
CLW5120 |
|
Payment & Shipping Terms |
|
|
Minimum Order Quantity |
1 |
|
Unit Price |
Negotiable |
|
Packaging Details |
naked,waxed,bulk ship,ro-ro |
|
Delivery Time |
30-35 days |
|
Payment Terms |
L/C, D/A, D/P, T/T, Western Union, MoneyGram |
|
Supply Ability |
500 Unit/Month |

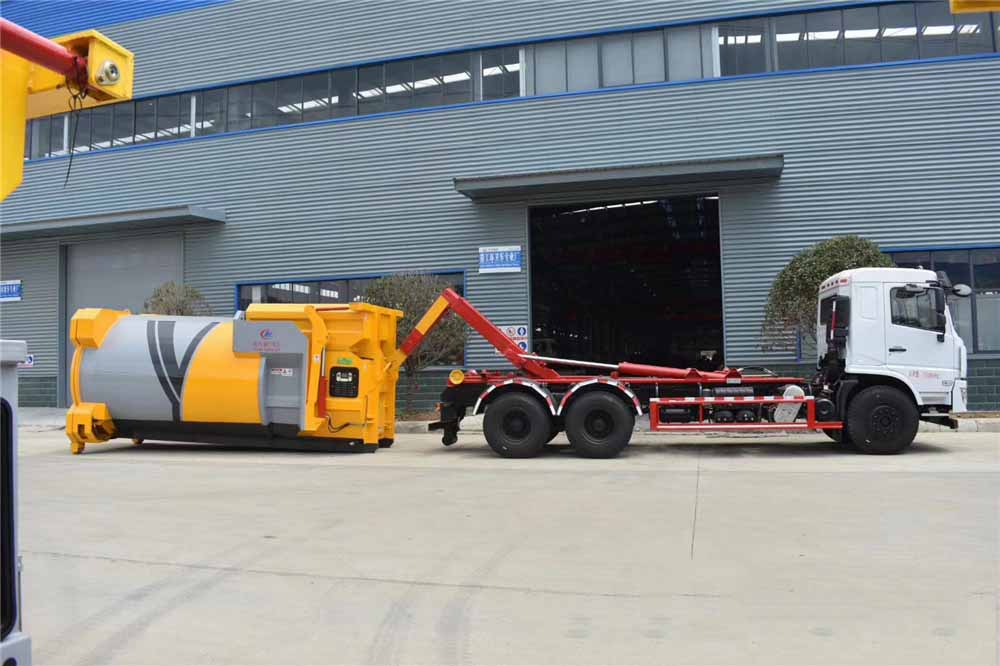

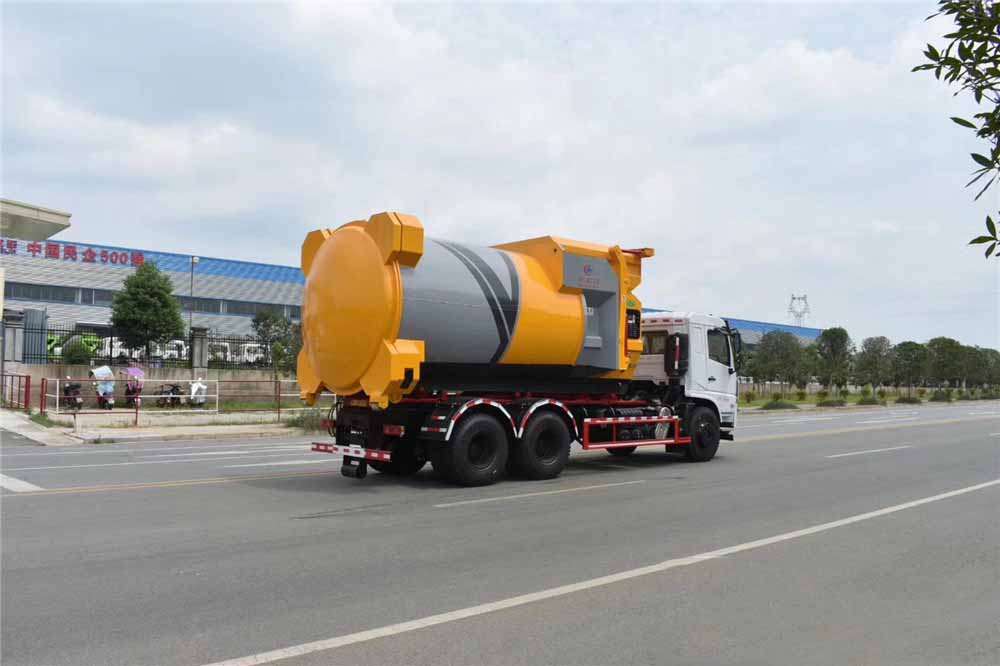

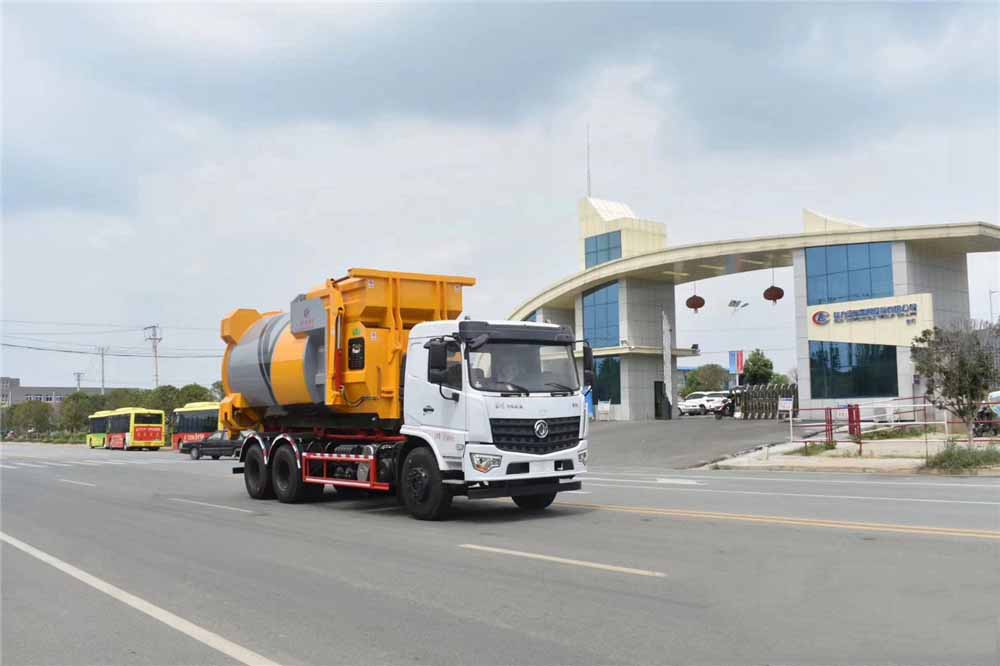

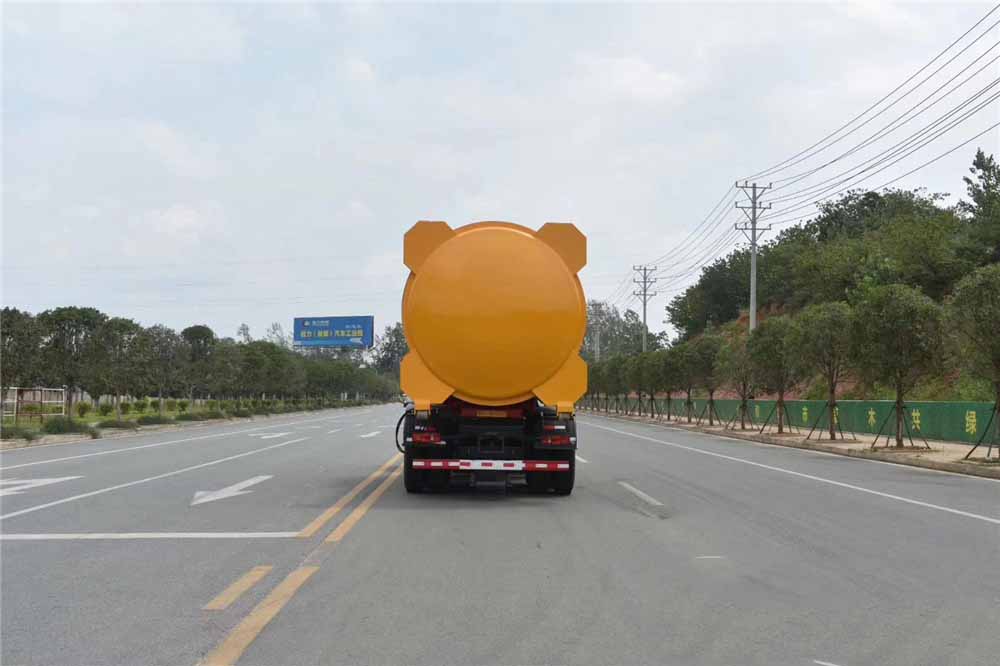

Dongfeng Tianlong 6x4 18M3 Hook Arm Automated Lifting Rear Loader Tipper Garbage Truck
Product Description
The Hook lift/Arm roll Garbage Truck really works well when the people need not to take the garbage from the container and load it to the garbage truck. What the truck does is just replace it with a empty one which promotes the efficiency. And the Arm roll garbage truck is wildly used in transporting different types of construction scrap materials or industrial waste which must be kept separate and transported. Multiple types of containers can be fitted on one truck for collection, increasing work efficiency.

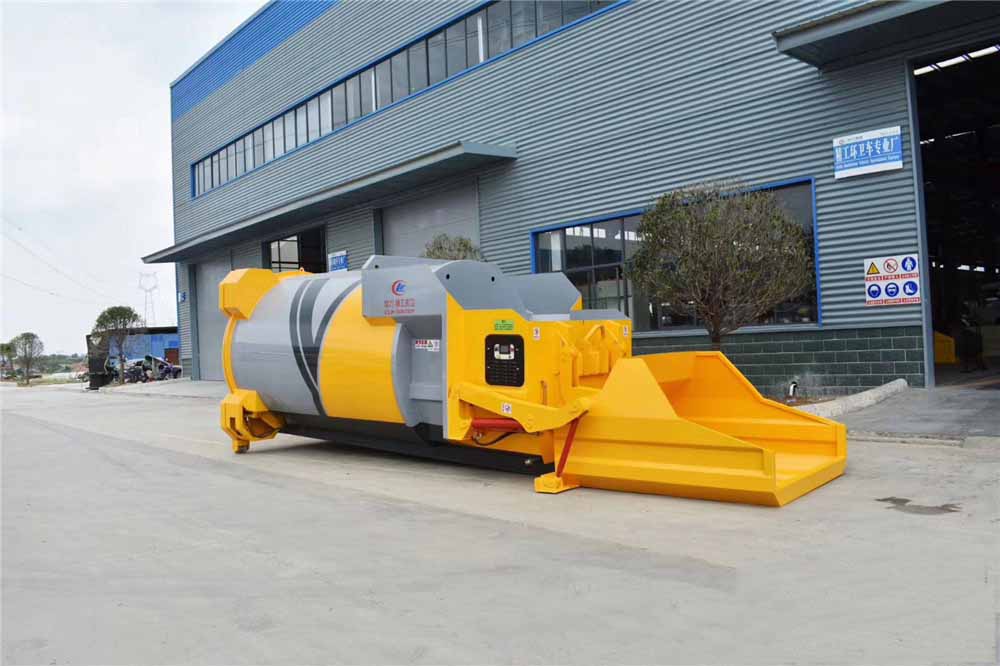

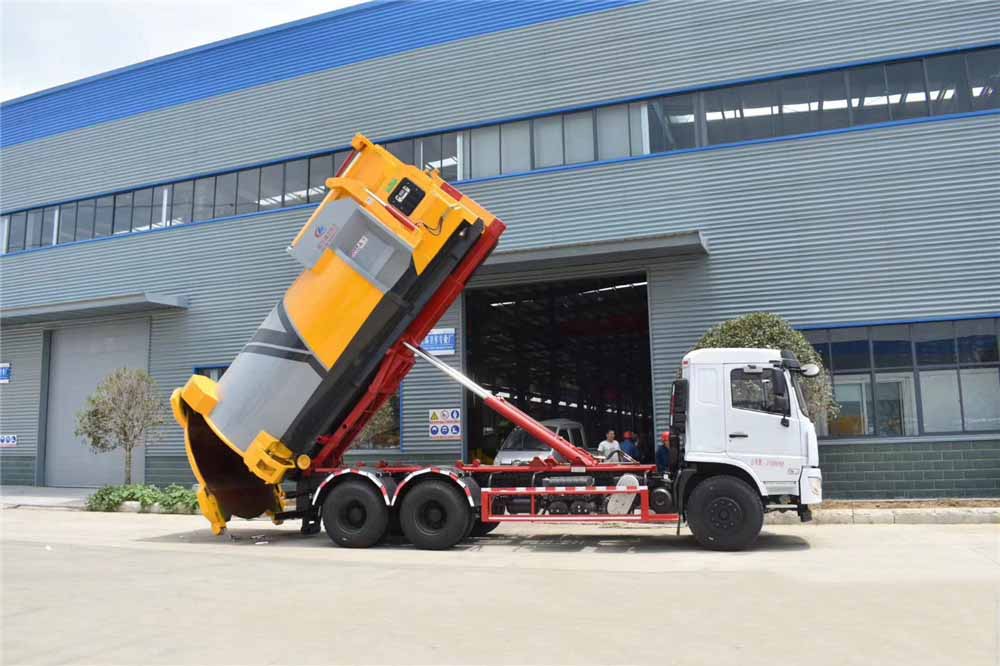

Containers are easy to load and unload safely. The contents can also be dumped out like a regular dump truck if desired. The mechanism for preventing the container from shaking during transportation comes standard. The arm slider mechanism keeps the container close to the ground during loading and unloading.
Hook arm lift garbage truck is mainly used for the collection and transport of a one-time non-recyclable municipal solid waste, commercial waste, and also used for non-toxic, non-corrosive and non-radioactive industrial garbage.It is produced with Germany technology.
product Specification
| Product name | Euro 5 Dongfeng 6X4 20-ton Roll Off Garbage Truck Hook/Arm Lift waste truck | |
| Chassis model | DFL1250A13 | |
| Container capacity | 13 t | |
| Vehicle specification | Dimension(LXWXH mm) | 8400X2500X3240 |
| Gross weight (kg) | 25000 | |
| Rated load weight(kg) | 13405 | |
| Curb weight(kg) | 11400 | |
| Approach/Departure angle (mm) | 18/12 | |
| F/R overhang (mm) | 1480/1220 | |
| Fuel type | Diesel | |
| Max speed (km/h) | 90 | |
| Engine specification | Model | ISD245 50 |
| Engine capacity/ power(kw) | 6700/180 | |
| Manufacturer | Dongfeng Cummins | |
| Type | In-line six cylinder turbocharged engine | |
| Chassis specification | Dirve wheel | 6X4 |
| Wheelbase(mm) | 4350+1350 | |
| F/R tread | 2040/1860/1860 | |
| Steering gear | ball-nut type steering gear | |
| Clutch | Single pedal, Dry clutch, hydraulic remote control | |
| Brake system | Air brake, CAM drum brake | |
| Cab | Metal, Flat head, Wide cab, titling cab | |
| Spring leaf(F/R) | 8/9 | |
| Tire specification | 11.00-20 18PR | |
| AC | Optional | |
