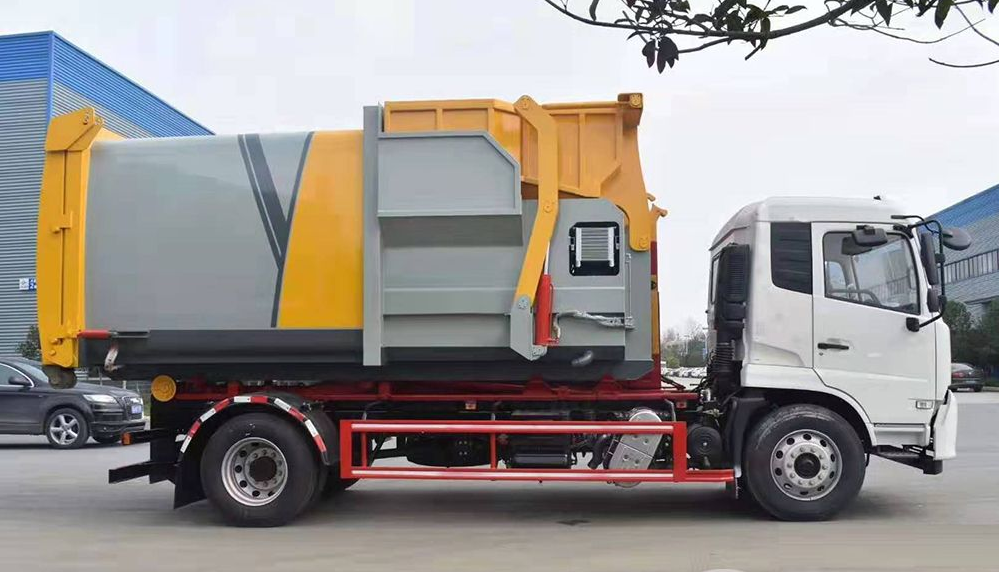

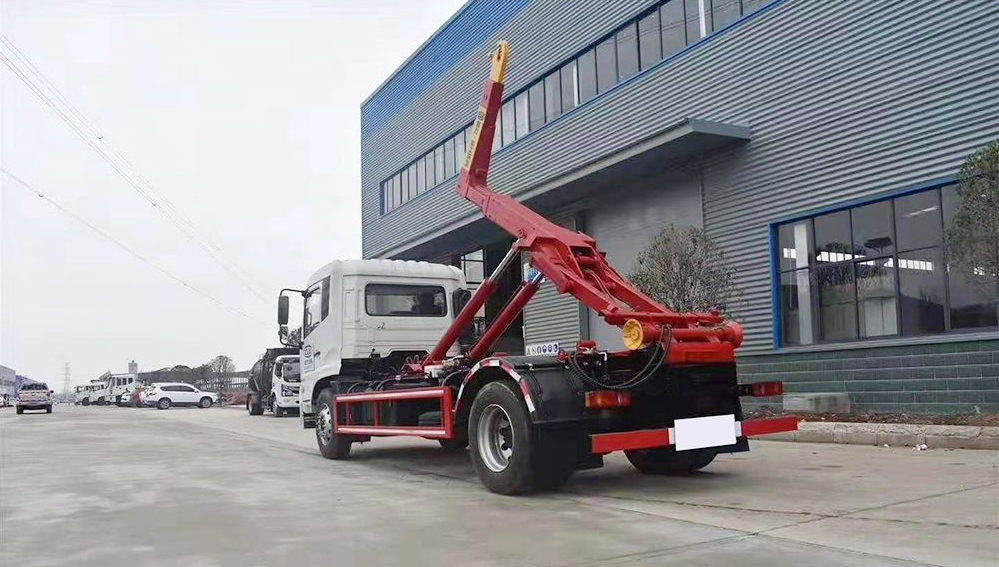

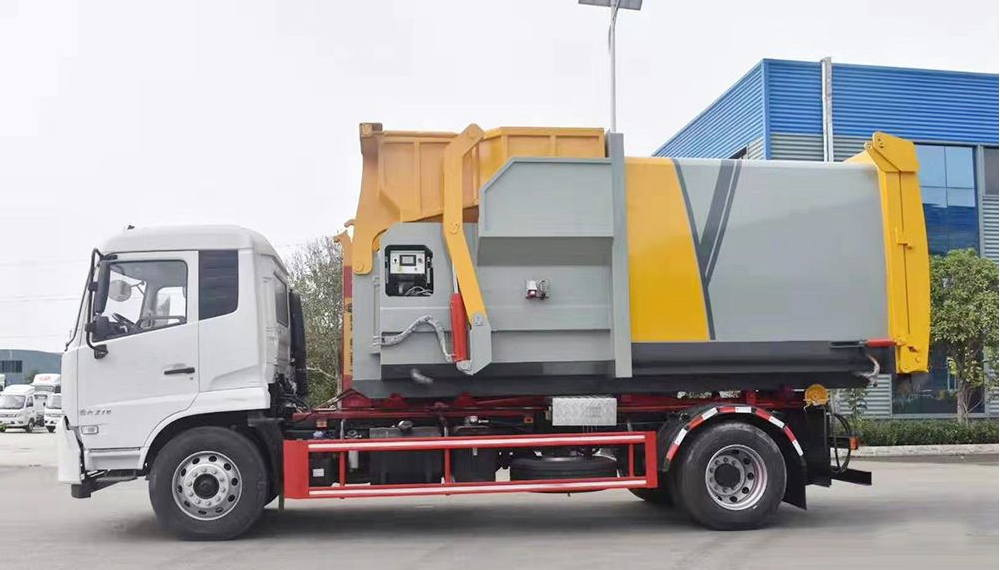

Dongfeng Hook Lift Garbage Truck 12tons 12cbm roll-off container garbage truck
1. Dongfeng Chassis of Hook Lift Garbage Truck: Engine 180HP, Fast Gearbox 5Forward & 1 Reverse,
2. Garbage Bin with different size options of Hook Lift Garbage Truck: 4cbm to 12cbm
2. Hydraulic Control Loading & Unloading System
3. Different shapes of Hook Lift Garbage Truck bins such as trapzoid,boat-shape,square shape and so on and divided into above-ground and under-ground type.
4. high-tensile steel chains:imported hydraulic oil cylinder and sealing material

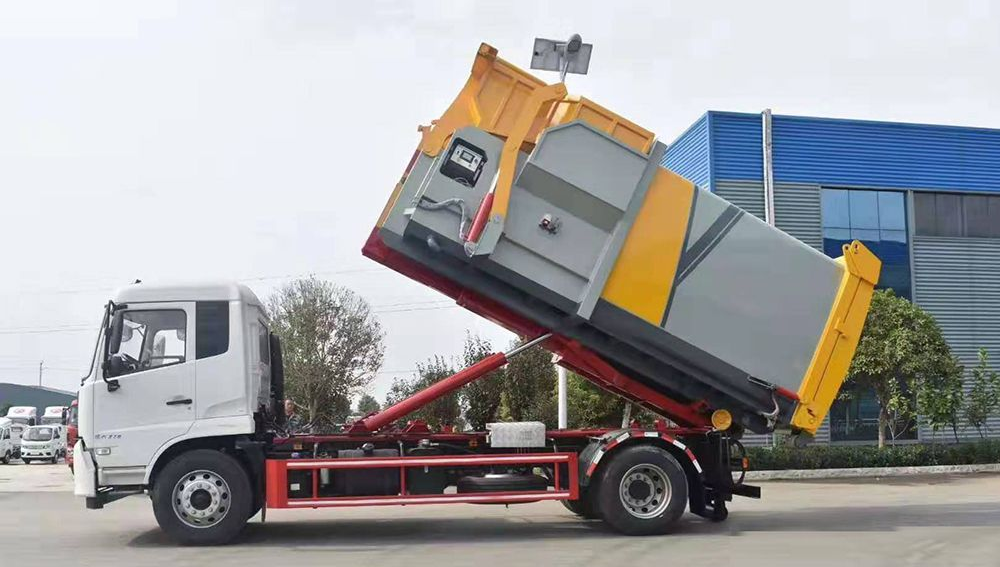

5. Lifting oil cylinder:double oil cylinder under garbage box,so garbage box can be lifted and self-dumped.
6. Double rear landing leg controlled by hydraulic multi-way valve to stablise truck
8. Best Choice for Garbage collection and transporation Inside City.
| Drive type | 4*2, New condition, LHD | ||
| Vehicle Main Dimensions | (L x W x H)mm | 7300×2470×3150 | |
| Wheel base (mm) | 4500,4700 | ||
| Track front/rear mm | 1880/1800 | ||
| F/R Axle-Load | 5800/10000 kg, | ||
| Approach/departure angle | 20/16 | ||
| Curb weight | 7945 kg | ||
| GVW | 15600 kg | ||
| Max. driving speed(km/h) | 95 | ||
| Engine | Brand | Cummins | |
| Model | B170 33,B180 33,B190 33 | ||
| Type | 4-stroke direct injection, 6-cylinder in-line with water cooling, turbo-charging and inter-cooling; | ||
| Horse Power(HP) | 170,180,190 | ||
| Emission standard | Euro III | ||
| Gearbox | 6 forwards& 1 reverse | ||
| Clutch | Reinforced diaphragm clutch | ||
| Tire | 9.00R20,10.00R20, 7 pc including 1 spare tire | ||
| Steering Gear | power steering, hydraulic steering with power assistance | ||
| Equipment for Garbage Compactor | |||
| Garbage Box Material | Carbon Steel Q235 | ||
| Garbage Box Volume | 10cbm,12cbm | ||
| Hydraulic System | Chinese brand,consist of oil pump,oil cylinder,front valve,rear valve,pressure gauge,oil box,filter and pipelines.Front valve controls push panel and strike-off board. | ||
